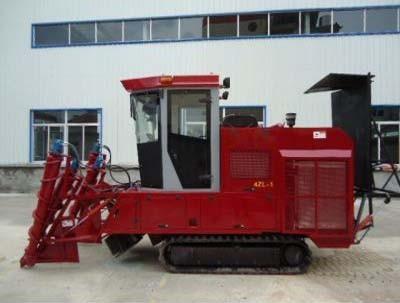

    4ZL whole stalk sugarcane combine harvester

    Ask Lasest Price
    Brand Name : Easwon
    Certification : CE
    Model Number : 4ZL
    Price : negotiated
    Delivery Time : 20 days
    Payment Terms : T/T or L/C
    Supply Ability : 100 set per month
    • Product Details
    • Company Profile

    4ZL whole stalk sugarcane combine harvester

    4ZL whole stalk sugarcane combine harvester

    Machine function: holding up the sugarcane, cutting sugarcane, transporting sugarcane, pealing leaf, docking tail, collecting sugarcane.

    Model No.

    4ZL

    Max. cutting height of the topper

    3300mm

    Min. cutting height of the topper

    1650mm

    Max. lifting height of the lifter

    950mm

    Max. lifting width of the lifter

    1950mm

    Max. ground clearance of the cutter

    365mm

    Max. embedded of the cutter

    50mm

    Min. harvesting row spacing

    1000mm

    Engine model

    6BTAA5.9-C190

    Engine rated power

    142kw/2000rmp

    Hydraulic system pressure

    22Mpa

    Max. running speed during operation

    3kw/h

    Working productivity

    ≥0.14hm2/h

    Fuel consumption

    32L/h

    Max. load of the collection box

    500kg

    Min. turning circle diameter

    3m

    Min. passing circle diameter

    6.8m

    Fuel tank

    150L

    Hydraulic tank

    220L

    Track specification

    350x52.5x88mm, 300x52.5x88mm

    Grade ability

    ≦16°

    Machine allowable angle of inclination

    ≦11°

    Overall width of cab

    1200mm

    Min. ground clearance

    320mm

    Dimension of chassis

    1800x2180mm

    Length of rear overhang

    3400mm

    Ground clearance of the collection box

    900mm

    Overall dimension

    5800x1800x2980mm

    Weight

    5800kg
