MXK3810 CNC Tenon Milling Machine

    Buy cheap MXK3810 CNC Tenon Milling Machine from wholesalers

    Buy cheap MXK3810 CNC Tenon Milling Machine from wholesalers
    • Buy cheap MXK3810 CNC Tenon Milling Machine from wholesalers

    MXK3810 CNC Tenon Milling Machine

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : MXK3810
    Certification : CE
    Price : negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

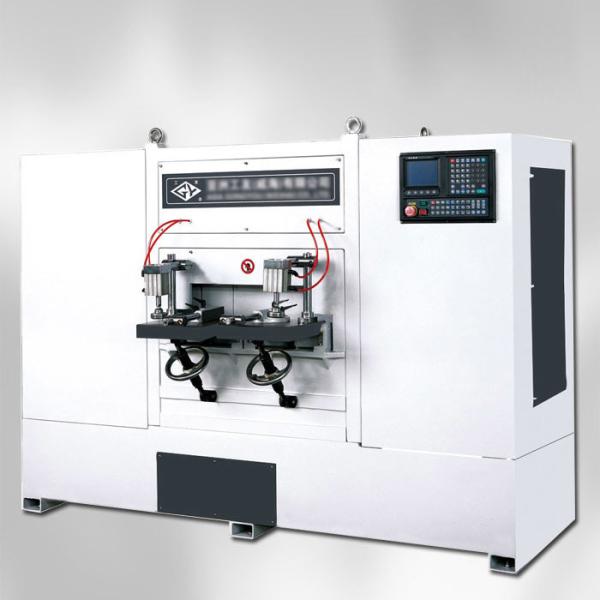

    MXK3810 CNC Tenon Milling Machine

    MXK3810 CNC Tenon Milling Machine


    MXK3810 CNC Tenon Milling Machine


    Technical specificationUintMXK3810
    Max. tenoning widthmm100
    Max. tenoning thicknessmm25
    Max. tenoning depthmm40
    Cutter internal diametermmØ30
    Cutter diametermmØ86(Ø114)
    Main spindle speedr/min7000
    Main motor powerkw3
    Table forward tilt angle°0-30°(30°,45°)
    Max. workpiece sizemm100x100(W x H)
    Horizontal motor powerkw1
    Vertical motor powerw750
    Max. X working speedm/min5
    Max. X moving speedm/min10
    Max. Y working speedm/min5
    Max. Y moving speedm/min10
    Air source pressureMPa0.4-0.6
    Overall dimensionmm2250x1150x682
    Net weightkg1180
