G45 G90 precision panel saw

    Buy cheap G45 G90 precision panel saw from wholesalers

    Buy cheap G45 G90 precision panel saw from wholesalers
    • Buy cheap G45 G90 precision panel saw from wholesalers

    G45 G90 precision panel saw

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : G90
    Certification : CE
    Price : negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

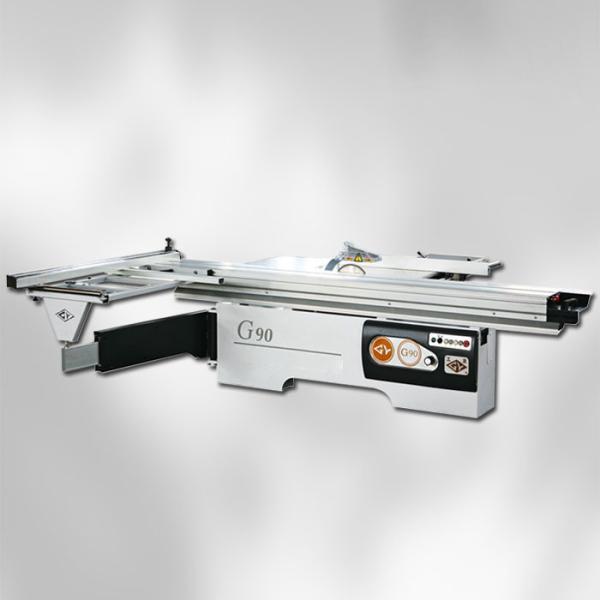

    G45 G90 precision panel saw

    G45, G90 Precision panel saw

    G45,G90 Precision panel saw is designed for sawing large board like plywood, mdf, particle board, solid wood etc. The precision panel saw is accommodated with 300mm saw blade, and powered by 5.5kw pure copper electromotor, joined by 1.1kw scoring saw blade motor that spins at 8700RPM to virtually eliminate tearout and produce clean cuts every time. The main saw lifting is powered by a small motor of 70W, which is more smooth and precision. All other features like 50mm solid rip fence rail, large table with cross cut fence etc make this model of precision panel saw can handle any cutting works, but only require limited budget.


    Precision panel saw specification:


    Technical specificationUnitH9032H45G45G90
    Max moveable distance of tablemm2800320028002800
    Max. sawing thicknessmm75757575
    Main saw blade diametermmØ300Ø300Ø300Ø300
    Main spindle diametermmØ30Ø30Ø30Ø30
    Main spindle speedr/min4000/50004000/500042004200
    Max. saw blade tilt angle/45°45°/
    Scoring saw spindle speedr/min8700870087008700
    Main saw lifting motorw/707070
    Scoring saw spindle diametermmØ20Ø20Ø20Ø20
    Scoring saw blade diametermmØ120Ø120Ø120Ø120
    Scoring saw motor powerkw1.11.11.11.1
    Spindle motor powerkw5.55.55.55.5
    Overall dimensionmm3050x3200x8203450x3200x8203050x3200x8203050x3200x820
    Net weightkg650740720710

    G45 G90 precision panel saw


    After sales services:


    1. Warranty: 1 year

    2. Lifetime upgrades and consulting services

    3. 24-hour servic hot line for consulting and solving the problems

    4. Provide product design and solution within 24 hours
